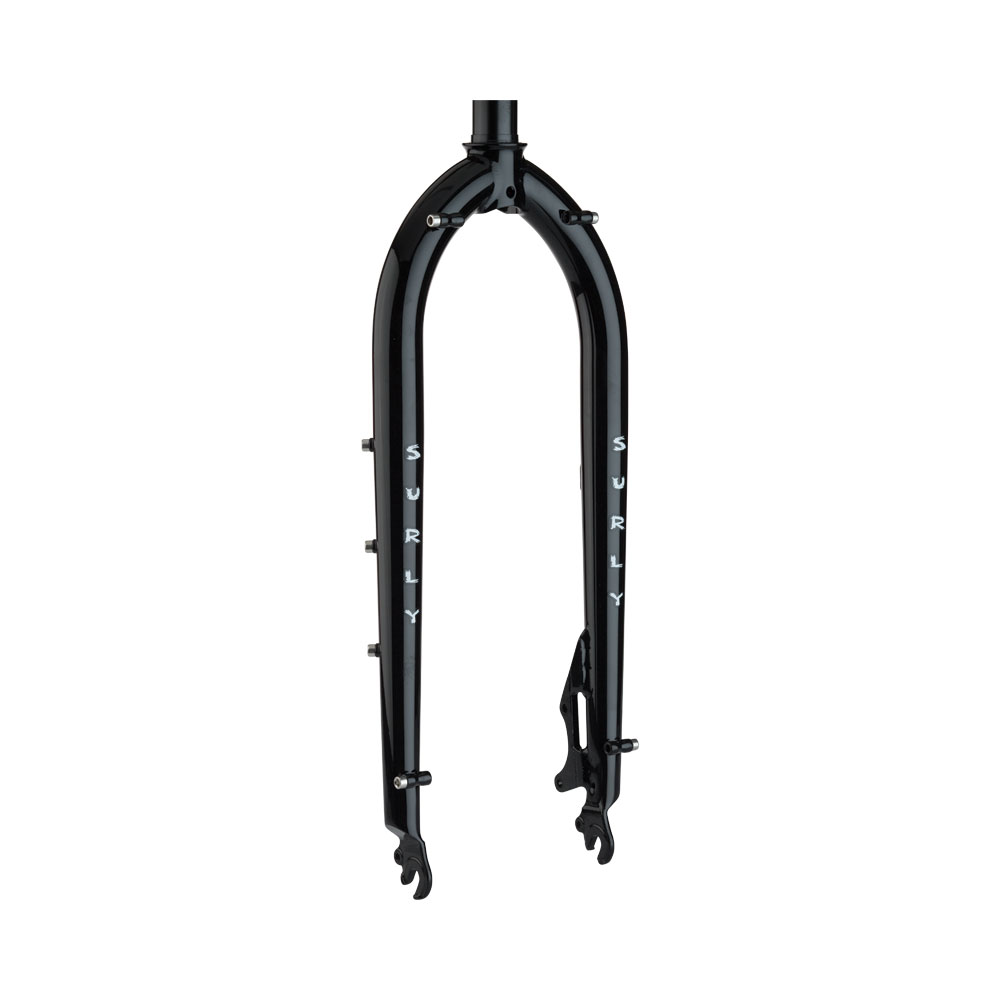

Much like its frame counterpart, the Pugsley Fork is ready to get as far off the beaten path as possible. It’ll accept 26˝ tires up to 4.3” and requires an offset-built wheel to match the Pugsley frame (17.5mm). We space the dropouts at 135mm, which is a useful feature, especially in remote places and extreme temperatures/conditions. Should your freehub seize due to cold, invasive grit or other reasons, you can swap wheels and keep moving. The fork has internally-butted, tapered straight legs. 51mm IS disc brake caliper mount uses standard front adapter.

Specifications:

Axle-to-crown: 447mm
Offset: 43mm
Steerer: 260mm, 1-1/8˝ straight
Tire Clearance: 26” x 4.3˝ (on rims up to 82mm wide)
