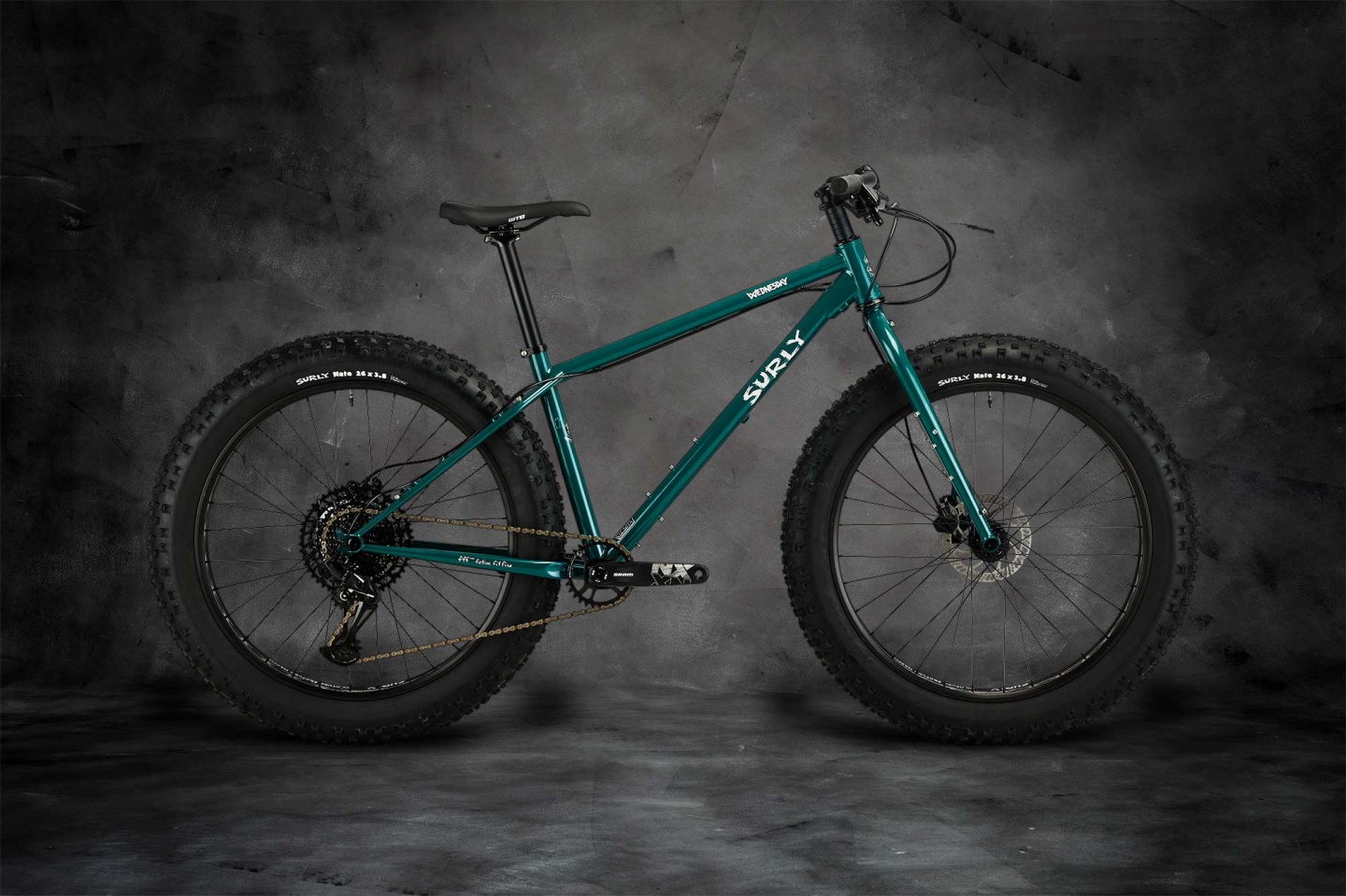

Highly Versatile Fat Tire Trail Bike
* Manufacturer's suggested retail price may not include additional shipping or preparation charges. Please contact your local dealer for a quote.
$1849 USD / $2599 CAD
*
Wednesday is a great all-around fat bike that has the soul of a trail bike and mind of a touring bike
The All-Around Fat Bike
Wednesday sits in the middle of our Trail category, but don’t let that fool you into thinking that’s its only use. With Wednesday, we borrowed elements from some of our Trail and Touring models to create a versatile fat tire trail bike that can truly handle anything you want to attempt.
If you do an equal amount of off-road touring as you do hitting trails, Wednesday’s ability to play both parts equally will suit you well. Or, if you’re looking for a fat bike and don’t need the fattest tires on the market, Wednesday’s 26 x 4.6” tire clearance is just the ticket.
“Any day of the week’s a great day to ride a Wednesday.”
- Modern mountain standards: stealth dropper post routing, 44mm headtube, suspension correction, front and rear thru-axles
- Full suite of useful braze-ons: front and rear racks, multiple sets of three-pack mounts, fenders
- Full-forward, short chainstay position: 26 x 3.8˝ tires on 80mm rims; full-rearward, longer chainstay position: 26 x 4.6˝ tires on an 80mm rim
Bike Capabilities
- 5/5 with Snow and Sand Snow and Sand: 5 out of 5
- 4/5 with Bikepacking Bikepacking: 4 out of 5
- 4/5 with Tire Clearance Tire Clearance: 4 out of 5
- 4/5 with Singletrack Singletrack: 4 out of 5
NOTE: You can ride your bike wherever the hell you want, but this is what we think this bike is best at.
Related Content
#wednesday Image Dump
#SurlyMakeItYourOwn
Tag your Instagram Images with #SurlyMakeItYourOwn and your bike may show up here.
This is a carousel that displays an Instagram feed of Surly bikes. Use Next and Previous buttons to navigate.
Where to Buy
Specifications
Frameset
- Frame
-
100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Fork
-
Surly Wednesday, Tapered straight blade 4130 Chromoly. 468mm axle to crown, 47mm offset. 51mm I.S. front standard disc mount, 150mm x 15mm thru-axle dropouts (axle included), 100mm suspension fork compatible
- Seatpost Clamp
- Stainless 33.1 collar, Black
Components
- Headset
- Cane Creek
- Brakes
- Tektro HD-M275/276, Tektro 160/160, 6-bolt
- Brake Levers
- Tektro HD-M275/276
- Shifter
- SRAM SX Eagle
- Stem
- Promax, 31.8mm
- Handlebar
- OE 31.8mm
- Saddle
- WTB Volt
- Seatpost
- Promax, 30.9mm, 0 offset
- Grip/Tape
- Velo Black
Drivetrain
- Crankset
- SRAM NX Eagle DUB, 30T
- Bottom Bracket
- SRAM DUB BSA
- Front Derailleur
- n/a
- Rear Derailleur
- SRAM SX Eagle
- Cassette
- SRAM PG-1210 Eagle, 11-50t, 12spd
- Chain
- SRAM SX Eagle
Wheels
- Front hub
- Novatec 15 x 150mm, 32h, 6-bolt
- Rear hub
- Novatec 12 x 177mm, 32h, 6-bolt
- Rims
- Surly My Other Brother Darryl
- Spokes
- 14G Black
- Tires
- Surly Nate 26 x 3.8˝, 60tpi, tubeless ready
Complete bike spec subject to change
units:
Select a few bike sizes to compare.
| SIZE | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Reach | 15.7 400.0 | 16.5 420.0 | 17.2 436.0 | 17.8 453.0 | 18.5 471.0 |
| Stack | 22.6 573.0 | 22.8 578.0 | 23.1 587.0 | 23.5 597.0 | 23.9 606.0 |
| Head Tube Angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| Head Tube Length | 3.7 95.0 | 3.9 100.0 | 4.3 110.0 | 4.7 120.0 | 5.1 130.0 |
| Seat Tube Length | 12.4 316.0 | 14.4 366.0 | 16.4 416.0 | 18.3 466.0 | 20.3 516.0 |
| BB Drop | 2.2 55.0 | 2.2 55.0 | 2.2 55.0 | 2.2 55.0 | 2.2 55.0 |
| Wheelbase | 42.6 1081.0 | 43.3 1101.0 | 44.2 1122.0 | 45.0 1143.0 | 45.8 1164.0 |
| Chainstay Length | 17.1 435.0 | 17.1 435.0 | 17.1 435.0 | 17.1 435.0 | 17.1 435.0 |
| Top Tube Length, Actual | 22.5 571.0 | 22.7 577.0 | 23.2 590.0 | 23.9 606.0 | 24.7 627.0 |
| Top Tube Length, Effective | 22.4 570.0 | 23.2 590.0 | 24.0 610.0 | 24.8 630.0 | 25.6 650.0 |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Standover Height | 28.0 711.0 | 29.0 737.0 | 30.5 774.0 | 31.8 807.0 | 33.1 841.0 |
| BB Height | 12.6 320 | 12.6 320 | 12.6 320 | 12.6 320 | 12.6 320 |
| Stem Length | 2.4 60 | 2.4 60 | 2.8 70 | 2.8 70 | 3.1 80 |
| Stem Angle | 0° | 0° | 0° | 0° | 0° |
| Handlebar Width | 27.6 700 | 27.6 700 | 29.5 750 | 29.5 750 | 29.5 750 |
| Crank Length | 6.7 170 | 6.7 170 | 6.9 175 | 6.9 175 | 6.9 175 |
| Fork Length | 18.4 468.0 | 18.4 468.0 | 18.4 468.0 | 18.4 468.0 | 18.4 468.0 |
| Fork Rake | 1.9 47.0 | 1.9 47.0 | 1.9 47.0 | 1.9 47.0 | 1.9 47.0 |
- Frame Construction
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
- Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
- Rear Dropout Configuration
Horizontal slotted with optional vertical dumpout
- Rear Hub Spacing
12 x 177mm (Surly axle included)
10 x 170mm with Surly 10/12 Adapter Washers (not included)
- Front Hub Spacing
15 x 150mm (Surly axle included)
- Rear Brake
Disc - 51mm I.S. (203mm max rotor)
- Front Brake
Disc - 51mm I.S. (203mm max rotor)
- Head Tube
Ø44mm
- Steerer Tube
Ø28.6mm (1-1/8")
- Crown Race
Ø30mm (1-1/8")
- Stock Headset Upper (S.H.I.S.)
ZS44/28.6
- Stock Headset Lower (S.H.I.S.)
EC44/30
- Seat Collar
Ø33.1mm
- Seatpost
Ø30.9mm
- Front Derailleur (Clamp)
High direct mount top-pull (Ø34.9mm)
- Max Chainring (CL)[3]
1x (Fat bike 170): 34T
2x (Fat bike 170): 26/38T
2x (Surly OD): 22/36T
- Bottom Bracket
100mm threaded (1.37" x 24TPI)
- Tire Clearance Frame [1]/[2]
26 x 4.6" (rear axle position)
26 x 3.8" (front axle position)
27.5 x 4.0" (rear axle position)
29 x 3.0"
- Tire Clearance Fork [1]
26 x 5.25"
29 x 3.0"
- Rigid Fork Spec
468 x 47mm
- Max Suspension Fork Length [4]
511 x 51mm (Fatbike 100mm)
- Bottle Mounts Frame
2 Standard (XS - M)
3 Standard (L - XL)
- Bottle Mounts Fork
2 Three-Pack
- Rack Mounts Frame
Yes (upper and lower threaded)
- Rack Mounts Fork
Yes (upper, lower, and mid-blade threaded)
- Fender Mounts Frame
Yes
- Fender Mounts Fork
N/A
- Other Features
Internal dropper post routing compatible
[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)
