Lowside is the bike that gets you across town for a quick rip on singletrack, then over to the bar for a night out.

Your BMX Bike All Grown Up

Lowside is like the grownup version of the bike you rode when you were a kid and still had hopes and dreams and some semblance of ambition. It’s just as happy riding singletrack as it is parked outside your favorite drinking establishment.

Lowside is a single speed mountain bike. Singlespeeding has been a part of Surly’s DNA since day one when we launched the 1x1 Rat Ride. After a lot of Homie Fall Fests and more feats of strength than we can recall, we decided to discontinue it a couple years back. Lowside picks up right where the 1x1 left off.

“Some have dubbed the Lowside the ultimate pub cruiser.”

  • Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles
  • Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
  • Spec'd in alternating years with 26 x 3” or 27.5 x 2.8” tires, the Lowside remains capable of running either option

Bike Capabilities

  • 5/5 with Single Track Single Track: 5 out of 5
  • 5/5 with Alley Exploration Alley Exploration: 5 out of 5
  • 5/5 with Homemade Jumps Homemade Jumps: 5 out of 5
  • 5/5 with Pub Cruising Pub Cruising: 5 out of 5

NOTE: You can ride your bike wherever the hell you want, but this is what we think this bike is best at.

Surly Lowside bike side view. Dream Tangerine color, concrete steps in background
Surly Lowside bike, three-quarter front view, Dream Tangerine color, leaning up against concrete steps
Biker wearing helmet and jeans riding Surly Lowside off of chain link fence
Surly Lowside bike drive-side detail showing Snuggnut chain tensioner, cog and chain
Biker wearing helmet and jeans riding Surly Lowside and catching air off of jump
Biker wearing helmet and jeans riding Surly Lowside riding and using front brake to lift rear wheel off ground balancing on front wheel
Surly Lowside bike, showing black handlebar, grip and front end detail

Related Content

Attention vandals! The Lowside is here!

by Atom
Tuesday, April 17th, 2018
Read More
Read more blog posts about Lowside

#lowside Image Dump

#SurlyMakeItYourOwn
Tag your Instagram Images with #SurlyMakeItYourOwn and your bike may show up here.

This is a carousel that displays an Instagram feed of Surly bikes. Use Next and Previous buttons to navigate.

Where to Buy

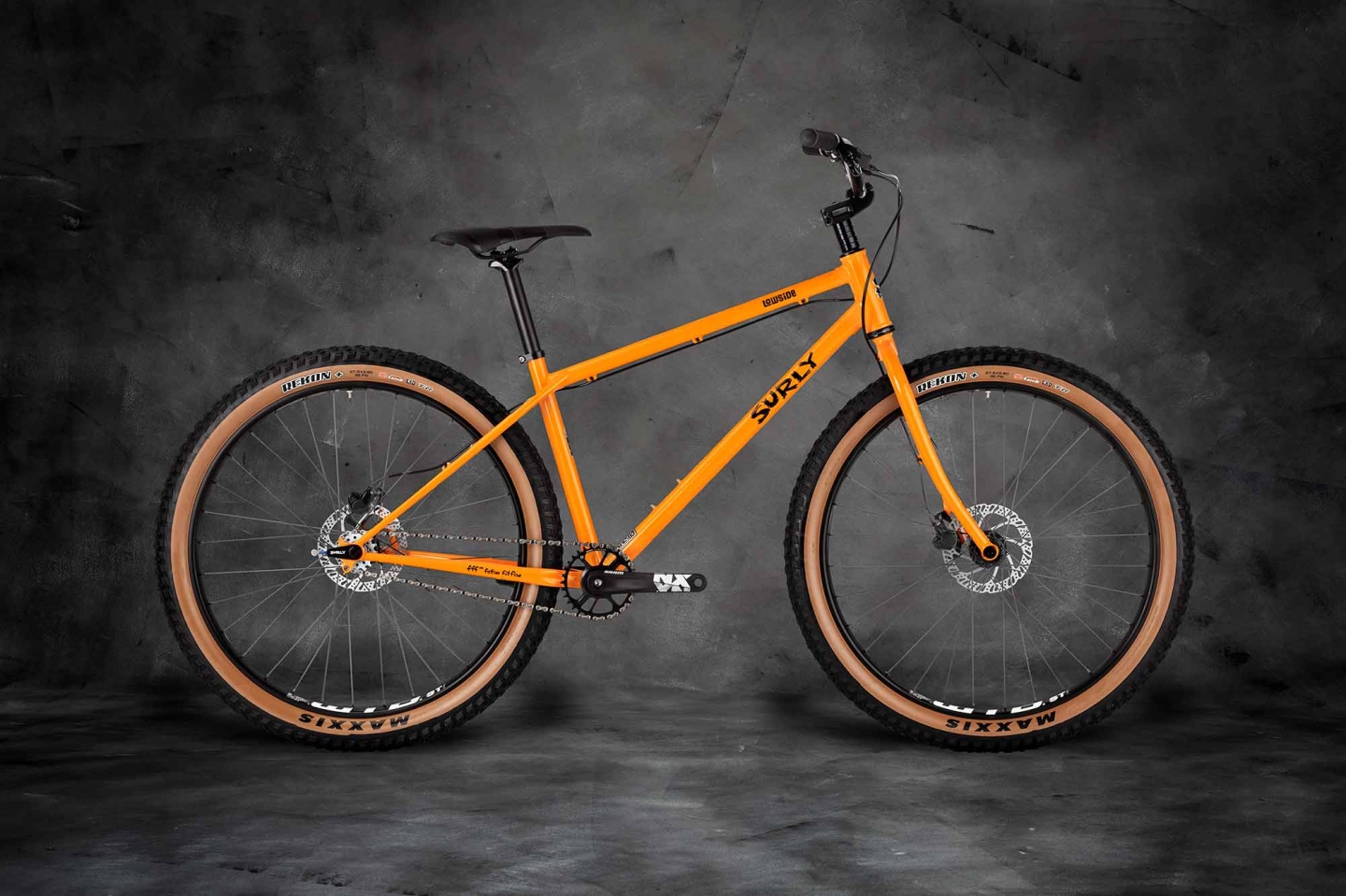

Surly Lowside Bike sideview - Dream Tangerine

Specifications

Frameset

Frame

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Seatpost Clamp
Surly Stainless 33.1mm clamp

Components

Headset
Cane Creek
Brakes
Tektro Hydro M275/276
Brake Levers
Tektro
Rotors
Tektro 160/160mm
Shifters
N/A
Stem
Sunday Freeze top load 22.2mm clamp
Handlebar
Surly Sunrise
Grip/Tape
Velo Black
Saddle
Selle Italia Black
Seatpost
2 Bolt, 30.9mm

Drivetrain

Crankset
SRAM NX 32t
Bottom Bracket
SRAM PS
Front Derailleur
N/A
Rear derailleur
N/A
Cog or cogset
Surly 17t w/ spacer kit
Chain
KMC X10

Wheels

Front Hub
Novatec 15x110
Rear Hub
Novatec 12x148
Rims
WTB ST i35 TCS
Tires
Maxxis Rekon+ 27.5x2.8 60tpi

Complete bike spec subject to change

MY22 Lowside Geometry - 27.5+
units:

Select a few bike sizes to compare.

SIZE XS SM MD LG XL
Rider Height 4'8"+ 1.42m+ 5'0"+ 1.52m+ 5'5"+ 1.65m+ 5'9"+ 1.75m+ 6'0"+ 1.85m+
Reach 16.3 414.5 16.9 429.3 17.5 445.3 18.1 461.0 18.8 477.0
Stack 21.3 542.2 22.1 560.3 22.6 574.4 23.2 588.5 23.7 602.5
Head Tube Angle 70.0° 70.0° 70.0° 70.0° 70.0°
Head Tube Length 4.3 110.0 4.9 125.0 5.5 140.0 6.1 155.0 6.7 170.0
Seat Tube Length 12.4 316.0 14.4 366.0 16.4 416.0 18.3 466.0 20.3 516.0
BB Drop 2.2 55.0 2.2 55.0 2.2 55.0 2.2 55.0 2.2 55.0
Wheelbase 42.0 1068.0 42.9 1089.0 43.7 1110.0 44.5 1131.0 45.4 1152.0
Chainstay Length 16.7 425.0 16.7 425.0 16.7 425.0 16.7 425.0 16.7 425.0
Top Tube Length, Actual 22.1 562.4 22.7 575.6 23.2 589.7 24.0 608.5 24.8 630.4
Top Tube Length, Effective 22.4 570.0 23.2 590.0 24.0 610.0 24.8 630.0 25.6 650.0
Seat Tube Angle 74.0° 74.0° 74.0° 74.0° 74.0°
Standover Height 27.6 700.0 28.7 729.0 30.0 762.0 31.2 792.0 32.4 823.0
Stem Length 52 52 52 52 52
Stem Angle 34mm rise° 34mm rise° 34mm rise° 34mm rise° 34mm rise°
Handlebar Width 32.2 820 32.2 820 32.2 820 32.2 820 32.2 820
Crank Length 6.7 170 6.7 170 6.9 175 6.9 175 6.9 175
Fork Length 16.5 420 16.5 420 16.5 420 16.5 420 16.5 420
Fork Rake 1.9 47.0 1.9 47.0 1.9 47.0 1.9 47.0 1.9 47.0

*Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø710mm

Select a few bike sizes to compare.

SIZE XS SM MD LG XL
Rider Height 4'8"+ 1.42m+ 5'0"+ 1.52m+ 5'5"+ 1.65m+ 5'9"+ 1.75m+ 6'0"+ 1.85m+
Reach 15.3 388.0 15.9 403.7 16.5 419.5 17.1 435.5 17.8 451.0
Stack 22.2 564.5 22.8 579.8 23.4 593.5 23.9 608.0 24.5 622.0
Head Tube Angle 67.3° 67.4° 67.5° 67.5° 67.6°
Head Tube Length 4.3 110.0 4.9 125.0 5.5 140.0 6.1 155.0 6.7 170.0
Seat Tube Length 12.4 316.0 14.4 366.0 16.4 416.0 18.3 466.0 20.3 516.0
BB Drop 1.4 35.6 1.4 36.0 1.4 36.4 1.4 36.7 1.5 37.0
Wheelbase 42.4 1077.0 43.2 1098.0 44.1 1119.5 44.9 1140.5 45.7 1161.5
Chainstay Length 16.7 425.0 16.7 425.0 16.7 425.0 16.7 425.0 16.7 425.0
Top Tube Length, Actual 22.1 562.4 22.7 575.6 23.2 589.7 24.0 608.5 24.8 630.4
Top Tube Length, Effective 22.8 578.0 23.5 598.0 24.3 618.0 25.1 638.0 25.9 658.0
Seat Tube Angle 71.4° 71.4° 71.5° 71.5° 71.6°
Standover Height 28.7 729.0 29.7 755.0 31.0 787.0 32.2 817.0 33.4 848.5
Stem Length 2.36 60 2.36 60 2.36 60 2.36 60 2.36 60
Stem Angle 6° 6° 6° 6° 6°
Handlebar Width 32.2 820 32.2 820 32.2 820 32.2 820 32.2 820
Crank Length 6.7 170 6.7 170 6.9 175 6.9 175 6.9 175
Fork Length 18.4 468.0 18.4 468.0 18.4 468.0 18.4 468.0 18.4 468.0
Fork Rake 1.7 42.0 1.7 42.0 1.7 42.0 1.7 42.0 1.7 42.0

*100mm suspension fork @25% sag

Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Rear Dropout Configuration

Horizontal slotted with optional vertical dumpout

Rear Hub Spacing

"Gnot-Boost" 145mm
12 x 142mm or 12 x 148mm (Surly axle included)
10 x 135mm with Surly 10/12 Adapter Washers (not included)

Front Hub Spacing

15 x 110mm (Surly axle included)

Rear Brake

Disc - 51mm I.S. (203mm max rotor)

Front Brake

Disc - 51mm I.S. (203mm max rotor)

Head Tube

Ø44mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S)

ZS44/28.6

Stock Headset Lower (S.H.I.S)

EC44/30

Seat Collar

Ø33.1mm

Seatpost

Ø30.9mm

Front Derailleur (Clamp)

High direct mount top-pull (Ø34.9mm)
26mm offset adapter (not included) for 142 or 135mm rear hub spacing
29mm offset adapter (not included) for 148mm rear hub spacing

Max Chainring (CL) [3]

1x (Mtn):  33T
1x (Boost):  36T

Bottom Bracket

73mm threaded (1.37" x 24TPI)

Tire Clearance Frame [1]/[2]

26 x 3.0"
27.5 x 2.8"

Tire Clearance Fork [1]

26 x 3.0"
27.5 x 2.8"

Rigid Fork Spec

420 x 47mm

Max Suspension Fork Length [4]

490 x 47mm (26 100mm)

Bottle Mounts Frame

1 Standard

Bottle Mounts Fork

N/A

Rack Mounts Frame

N/A

Rack Mounts Fork

N/A

Fender Mounts Frame

N/A

Fender Mounts Fork

N/A

Other Features

Internal dropper post routing compatible

  • [1] Different tire and rim combinations will result in different clearances.
    [2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not the frame.
    [3] Listed chainring clearance is worst case scenario.  Clearances vary widely depending on components and configurations.
    [4] Suspension fork length listed at full extension (not at sag)
