Karate Monkey
Hardtail Mountain Bike for All Trails
* Manufacturer's suggested retail price may not include additional shipping or preparation charges. Please contact your local dealer for a quote.
$1849–2599 USD / $2549–3499 CAD
*
Karate Monkey is a highly-versatile trail bike that plays the part of 29er and 27.5+ equally well.
Multipurpose Hardtail Mountain Bike
Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to our computing machine (Thor) it can be set up in approximately 487 different configurations.
Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.
- Modern trail standards: dropper post compatibility, 44mm headtube, Gnot-Boost rear spacing, thru-axles, suspension corrected fork
- Compatibility with most mountain bike standards makes it the perfect parts bin bike (no rim brakes allowed though)
- Clearance for 29” x 2.5” or 27.5” x 3” tires
Bike Capabilities
- 5/5 with Singletrack Singletrack: 5 out of 5
- 4/5 with Bikepacking Bikepacking: 4 out of 5
- 3/5 with Commuting Commuting: 3 out of 5
- 4/5 with Tire Clearance Tire Clearance: 4 out of 5
NOTE: You can ride your bike wherever the hell you want, but this is what we think this bike is best at.
Related Content
#karatemonkey Image Dump
#SurlyMakeItYourOwn
Tag your Instagram Images with #SurlyMakeItYourOwn and your bike may show up here.
This is a carousel that displays an Instagram feed of Surly bikes. Use Next and Previous buttons to navigate.
Where to Buy
Specifications
Frameset
- Frame
-
Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
- Fork
- RockShox 35 Gold RL, 15 x 110mm, 140mm travel
- Seatpost Clamp
- Surly stainless, 33.1mm
Components
- Headset
- Cane Creek
- Brakes
- Tektro Gemini HD-M520
- Rotors
- 180F/160R
- Shifter
- Shimano Deore XT, 12-spd
- Stem
- ProMax 31.8
- Handlebar
- Salsa Rustler
- Grips
- Velo Black
- Saddle
- WTB Volt
- Seatpost
- TranzX YSP15, 30.9 XS: 100mm, SM-XL: 120mm
Drivetrain
- Crankset
- Shimano Deore M-6100, 30t
- Bottom Bracket
- Shimano
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano Deore XT M-8100
- Cog or Cogset
- OE 12-spd, 11-51t
- Chain
- KMC X12 Anti-Rust
Wheels
- Front Hub
- Novatec 15x110, 32h, 6-bolt
- Rear Hub
- Novatec 12x148, 32h, 6-bolt
- Rims
- WTB ST i35 TCS 2.0
- Tires
- Surly Dirt Wizard 27.5 x 2.8", 60tpi, Tubeless Ready
Frameset
- Frame
-
Custom double butted externally flaired tubing. Horizontal slotted with derailleur hanger, Surly “Gnot Boost” 142 or 148mm hub spacing compatibility
- Fork
-
483mm axle-to-crown x 47mm offset, 110mm hub spacing, tapered and butted straight blade. 51mm I.S. disc mount
- Seatpost Clamp
- Surly stainless, 33.1mm
Components
- Headset
- Cane Creek 15
- Brakes
- Tektro HD-M275
- Brake Levers
- Tektro HD-M275
- Rotors
- Tektro 180/160mm
- Shifter
- Shimano Deore SL-M6100
- Stem
- Promax 31.8
- Handlebar
- Salsa Rustler without logo
- Grips
- Velo - lock on
- Saddle
- WTB Volt 142
- Seatpost
- Promax 30.9
Drivetrain
- Crankset
- Shimano Deore FC-MT510-1, 30t
- Bottom Bracket
- Shimano, included with crankset
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano Deore RD-M6100, 12-speed
- Cog or cogset
- SunRace CSMZ800, 11-51t, 12-Speed
- Chain
- KMC X12, NP/BK
Wheels
- Front Hub
- 110mm, Novatec, 32h, Thru-Axle
- Rear Hub
- 148mm, Novatec, 32h, Thru-Axle
- Rims
- WTB ST i40 TCS
- Tires
- Surly Dirt Wizard 27 x 3", 60 tpi, Tubeless Ready
Frameset
- Frame
-
Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
- Fork
-
Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
- Seatpost Clamp
- Surly stainless, 33.1mm
Components
- Headset
- Cane Creek
- Brakes
- SRAM Avid BB5 Mechanical
- Brake Levers
- SRAM Avid FR5
- Rotors
- 180F/160R
- Shifter
- Shimano Deore 12-spd
- Stem
- Kalloy 31.8
- Handlebar
- Salsa Rustler
- Grips
- Velo Black
- Saddle
- Selle Italia
- Seatpost
- Kalloy 30.9
Drivetrain
- Crankset
- Shimano Deore MT510, 30t
- Bottom Bracket
- Shimano
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano Deore 6100 SGS
- Cog or cogset
- OE 12-spd, 11-51t
- Chain
- KMC X12, Anti-Rust
Wheels
- Front Hub
- Novatec 15x110, 32h, 6-bolt
- Rear Hub
- Novatec 12x148, 32h, 6-bolt
- Rims
- WTB ST i40 TCS 2.0
- Tires
- Surly Dirt Wizard 27.5 x 3", 60tpi, Tubeless Ready
Complete bike spec subject to change
units:
Select a few bike sizes to compare.
| SIZE | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Reach | 14.6 371 | 15.6 396 | 16.6 421 | 17.4 443 | 18.3 466 |
| Stack | 23.7 601 | 23.7 601 | 23.7 602 | 24.0 611 | 24.4 621 |
| Head Tube Angle | 68° | 68° | 68° | 68° | 68° |
| Head Tube Length | 3.9 100 | 3.9 100 | 3.9 100 | 4.3 110 | 4.7 120 |
| Seat Tube Length | 13.0 330 | 14.5 368 | 16.5 419 | 18.5 470 | 20.5 521 |
| BB Drop | 2.0 51 | 2.0 51 | 2.0 51 | 2.0 51 | 2.0 51 |
| Wheelbase | 41.6 1057 | 42.6 1082 | 43.6 1107 | 44.6 1132 | 45.6 1158 |
| Chainstay Length | 16.7 423 | 16.7 423 | 16.7 423 | 16.7 423 | 16.7 423 |
| Top Tube Length, Actual | 21.6 550 | 22.1 560 | 22.6 575 | 23.5 598 | 24.6 625 |
| Top Tube Length, Effective | 22.1 562 | 23.1 587 | 24.1 612 | 25.1 637 | 26.1 662 |
| Seat Tube Angle | 72° | 72° | 72° | 72° | 72° |
| Standover Height | 29.6 751 | 30.3 769 | 31.1 791 | 32.2 819 | 33.4 848 |
| Stem Length | 2.4 60 | 2.8 70 | 2.8 70 | 2.8 70 | 3.1 80 |
| Stem Angle | 7° | 7° | 7° | 7° | 7° |
| Handlebar Width | 29.5 750 | 29.5 750 | 31.5 800 | 31.5 800 | 31.5 800 |
| Crank Length | 6.7 170 | 6.7 170 | 6.9 175 | 6.9 175 | 6.9 175 |
| Fork Length | 19.6 499 | 19.6 499 | 19.6 499 | 19.6 499 | 19.6 499 |
| Fork Rake | 1.7 44 | 1.7 44 | 1.7 44 | 1.7 44 | 1.7 44 |
Select a few bike sizes to compare.
| SIZE | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Reach | 14.8 377 | 15.8 402 | 16.8 427 | 17.7 450 | 18.6 472 |
| Stack | 23.5 597 | 23.5 597 | 23.5 597 | 23.9 606 | 24.2 615 |
| Head Tube Angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| Head Tube Length | 3.9 100 | 3.9 100 | 3.9 100 | 4.3 110 | 4.7 120 |
| Seat Tube Length | 13.0 330 | 14.5 368 | 16.5 419 | 18.5 470 | 20.5 521 |
| BB Drop | 2.2 55 | 2.2 55 | 2.2 55 | 2.2 55 | 2.2 55 |
| Wheelbase | 41.5 1053 | 42.4 1078 | 43.4 1103 | 44.4 1129 | 45.5 1155 |
| Chainstay Length | 16.7 423 | 16.7 423 | 16.7 423 | 16.7 423 | 16.7 423 |
| Top Tube Length, Actual | 21.6 549.7 | 22.1 560.4 | 22.6 575 | 23.5 597.5 | 24.6 624.5 |
| Top Tube Length, Effective | 22.0 560 | 23.0 585 | 24.0 610 | 25.0 635 | 26.0 660 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| Standover Height | 29.3 743 | 29.9 759 | 30.8 783 | 32.0 812 | 32.6 827 |
| Stem Length | 2.4 60 | 2.8 70 | 2.8 70 | 2.8 70 | 3.1 80 |
| Stem Angle | 7° | 7° | 7° | 7° | 7° |
| Handlebar Width | 29.5 750 | 29.5 750 | 31.5 800 | 31.5 800 | 31.5 800 |
| Crank Length | 6.7 170 | 6.7 170 | 6.9 175 | 6.9 175 | 6.9 175 |
| Fork Length | 19.0 483 | 19.0 483 | 19.0 483 | 19.0 483 | 19.0 483 |
| Fork Rake | 1.9 47 | 1.9 47 | 1.9 47 | 1.9 47 | 1.9 47 |

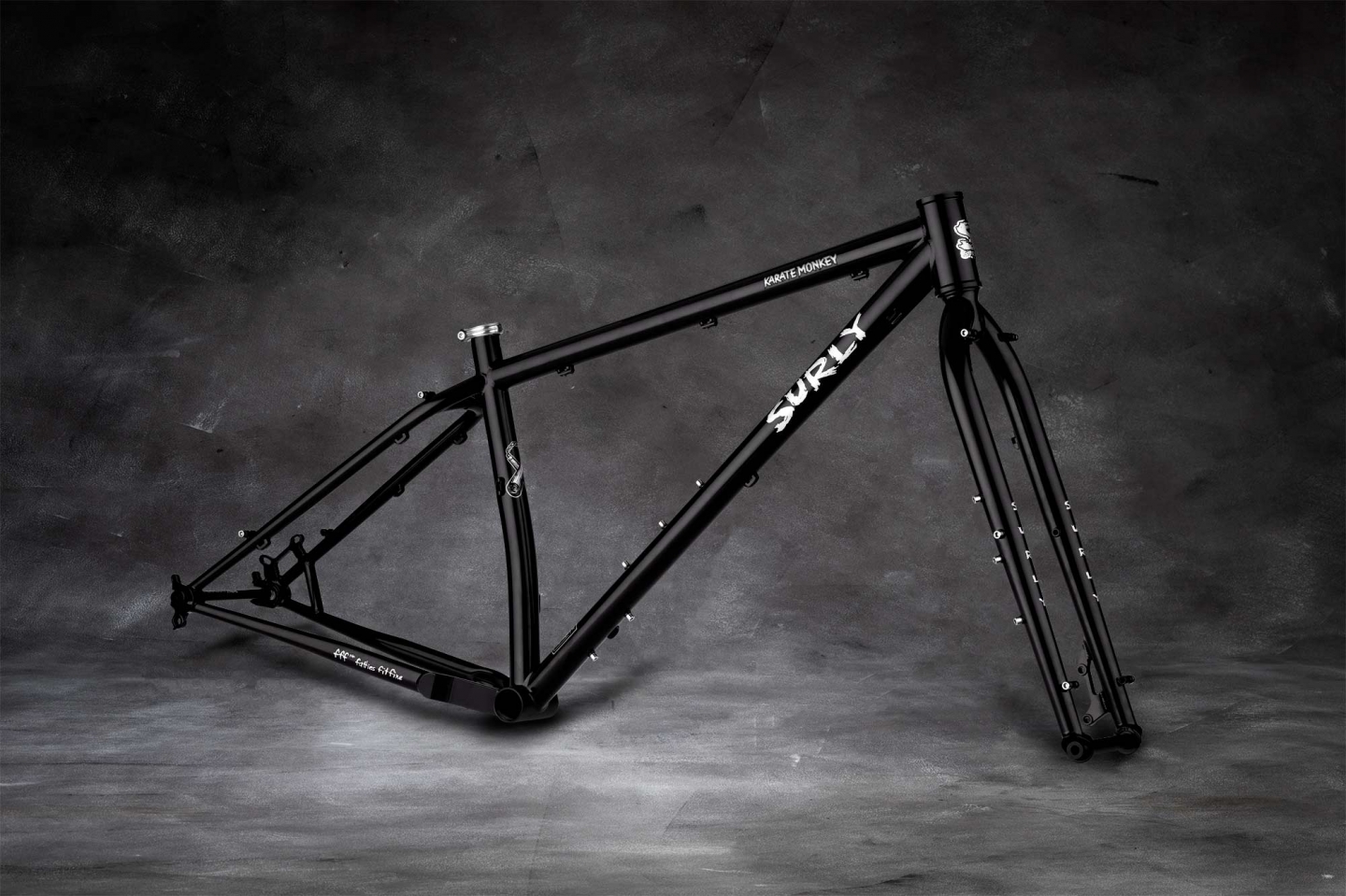

- Frame Construction
4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
- Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
- Rear Dropout Configuration
Horizontal slotted with optional vertical dumpout
- Rear Hub Spacing
"Gnot-Boost" 145mm
12 x 142mm or 12 x 148mm (Surly axle included)

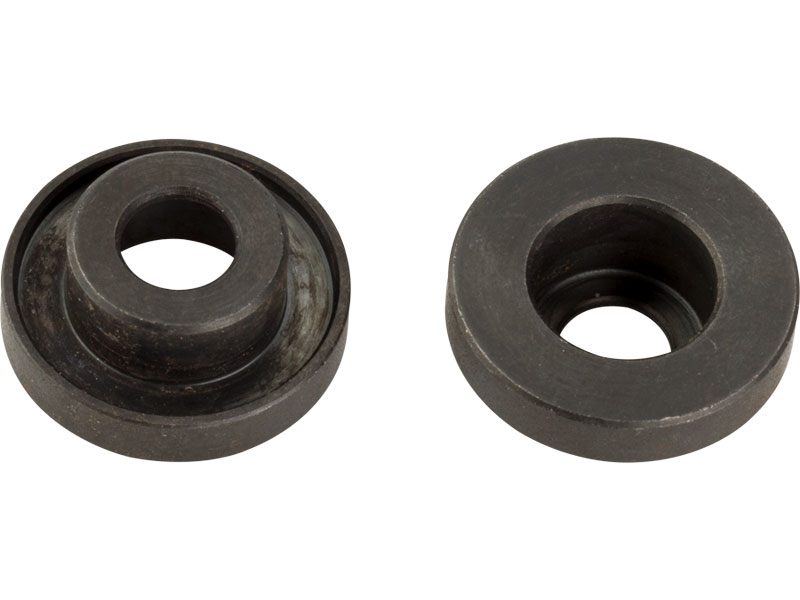

10 x 135mm with Surly 10/12 Adapter Washers (not included)
- Front Hub Spacing
15 x 110mm (Surly axle included)
- Rear Brake
Disc - 51mm I.S. (203mm max rotor)
- Front Brake
Disc - 51mm I.S. (203mm max rotor)
- Head Tube
Ø44mm
- Steerer Tube
Ø28.6mm (1-1/8")
- Crown Race
Ø30mm (1-1/8")
- Stock Headset Upper (S.H.I.S)
ZS44/28.6
- Stock Headset Lower (S.H.I.S)
EC44/30
- Seat Collar
Ø33.1mm
- Seatpost
Ø30.9mm
- Front Derailleur (Clamp)
High direct mount top-pull (Ø34.9mm)
26mm offset adapter (not included) for 142 or 135mm rear hub spacing
29mm offset adapter (not included) for 148mm rear hub spacing
- Max Chainring (CL) [3]
1x (Mtn): 28T
2x (Mtn): 24/34T
1x (Boost): 32T
2x (Boost): 24/36T
- Bottom Bracket
73mm threaded (1.37" x 24TPI)
- Tire Clearance Frame [1]/[2]
27.5 x 3.0”
29 x 2.5"
- Tire Clearance - Rigid Fork [1][5]
29 x 3.0”
- Rigid Fork Spec
483 x 47mm
- Max Suspension Fork Length [4]
551 x 51mm (27.5+ 140mm)
- Bottle Mounts Frame
1 Standard + 1 Three-Pack (XS - M)
2 Standard + 1 Three-Pack (L - XL)
- Bottle Mounts Fork
2 Three-Pack
- Rack Mounts Frame
Yes (upper and lower threaded)
- Rack Mounts Fork
Yes (upper, lower, and mid-blade threaded)
- Fender Mounts Frame
Yes
- Fender Mounts Fork
N/A
- Other Features
Internal dropper post routing compatible
[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not the frame.
[3] Listed chainring clearance is worst-case scenario. Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag)
[5] For suspension fork tire clearance, please reference the fork manufacturer's website.
Support
Downloads
- Karate Monkey Frame Sheet
[pdf] - 1.5MB - Karate Monkey Fork Instructions
[pdf] - 6.9MB - 10/12 Adapter Washers
[pdf] - 546KB - Surly Bike Sizing Chart
[pdf] - 308KB - Universal Thru-Axle Instructions
[pdf] - 269KB - Wheel/Rim/Tire instructions
[pdf] - 672KB - Bicycle Owner’s Manual (English)
[pdf] - 1.2MB
Frame Warranty
LIMITED WARRANTY
This Surly product is warranted against defects in materials and workmanship for three years from the date of retail purchase of the product, subject to the limitations detailed below. Save your dated receipt for proof of purchase.
This warranty does NOT cover the following:
- Damage due to improper assembly or follow-up maintenance or lack of skill, competence or experience of the user or assembler
- Products that have been modified, neglected, used in competition or for commercial purposes, misused or abused, involved in accidents or anything other than normal use
- Installation of components, parts or accessories not originally intended for or compatible with bicycle as sold
- Damage or deterioration to the paint, surface finish, aesthetics or appearance of the product
- Normal wear and tear
- Labor required to remove and/or refit and re-adjust the product within the bicycle assembly
This limited warranty is expressly limited to the repair or replacement of a defective product, at the option of Surly, and is the sole remedy of the warranty. This limited warranty applies only to the original purchaser of the Surly product and is not transferrable. This warranty applies only to products purchased through an authorized dealer or distributor. In no event shall Surly be liable for any loss, inconvenience or damage, whether direct, incidental, consequential, or otherwise resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to our products except as set forth herein.
This limited warranty gives the consumer specific legal rights, and those rights and other rights may vary from place to place. This limited warranty does not affect your statutory rights.
TO THE EXTENT NOT PROHIBITED BY LAW, THESE WARRANTIES ARE EXCLUSIVE AND THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
You might also like
-
-

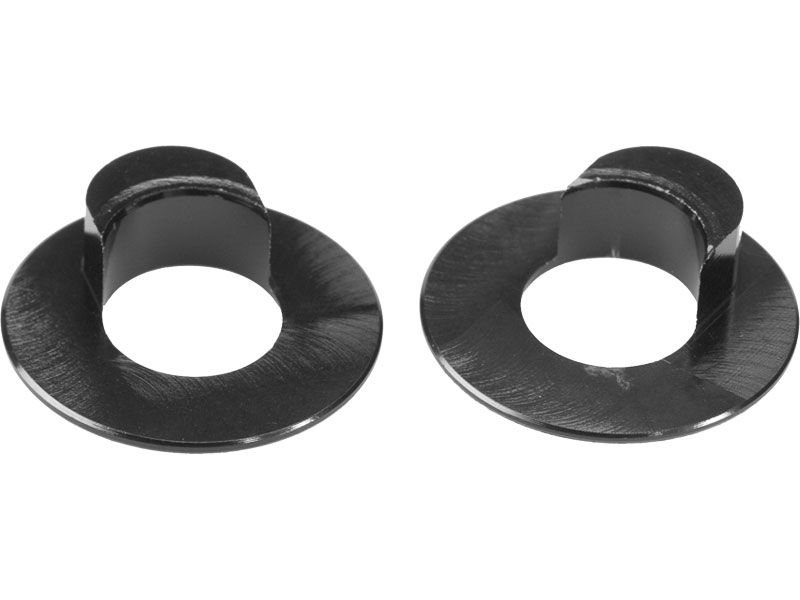

Monkey Nuts
