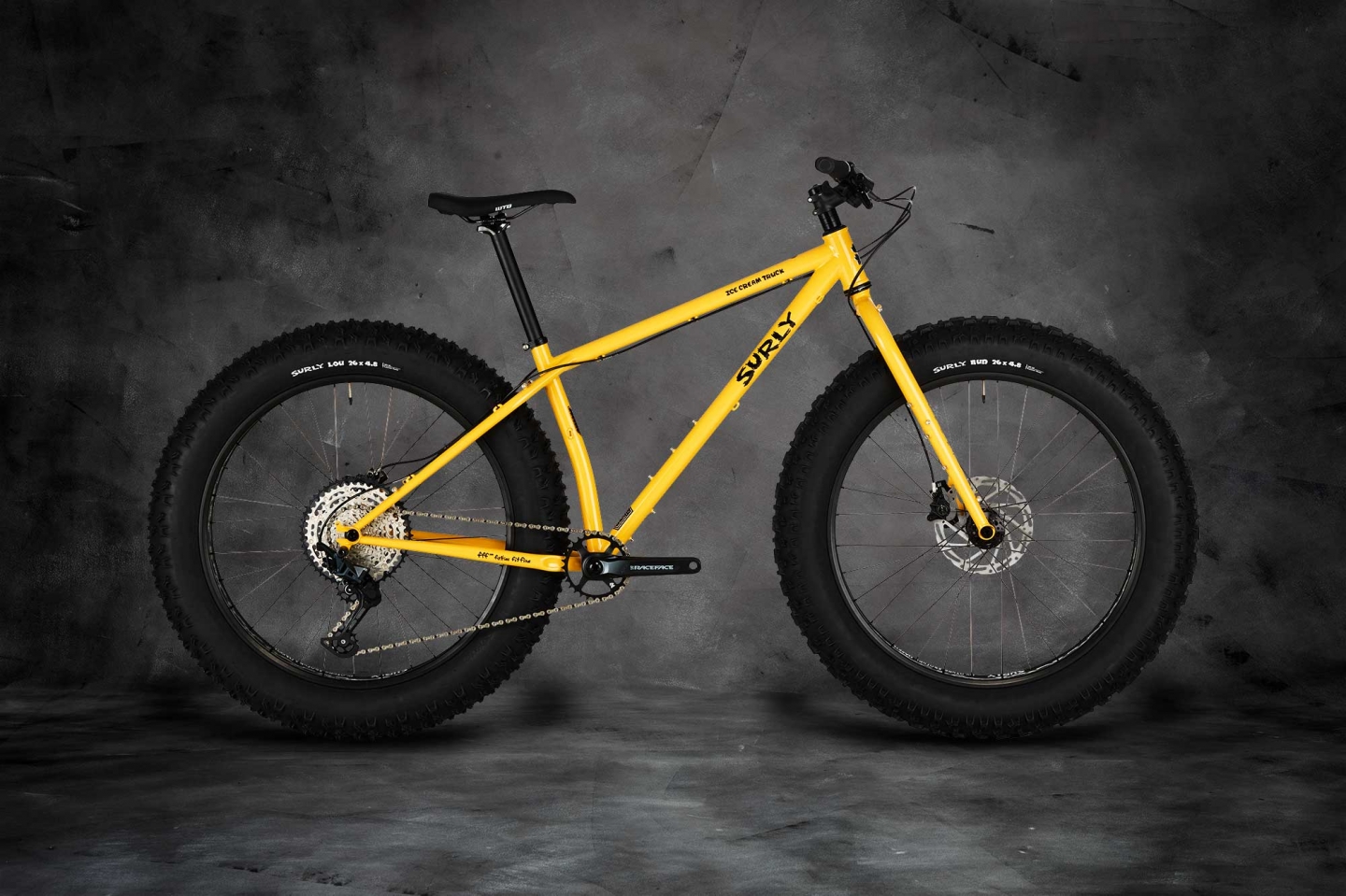

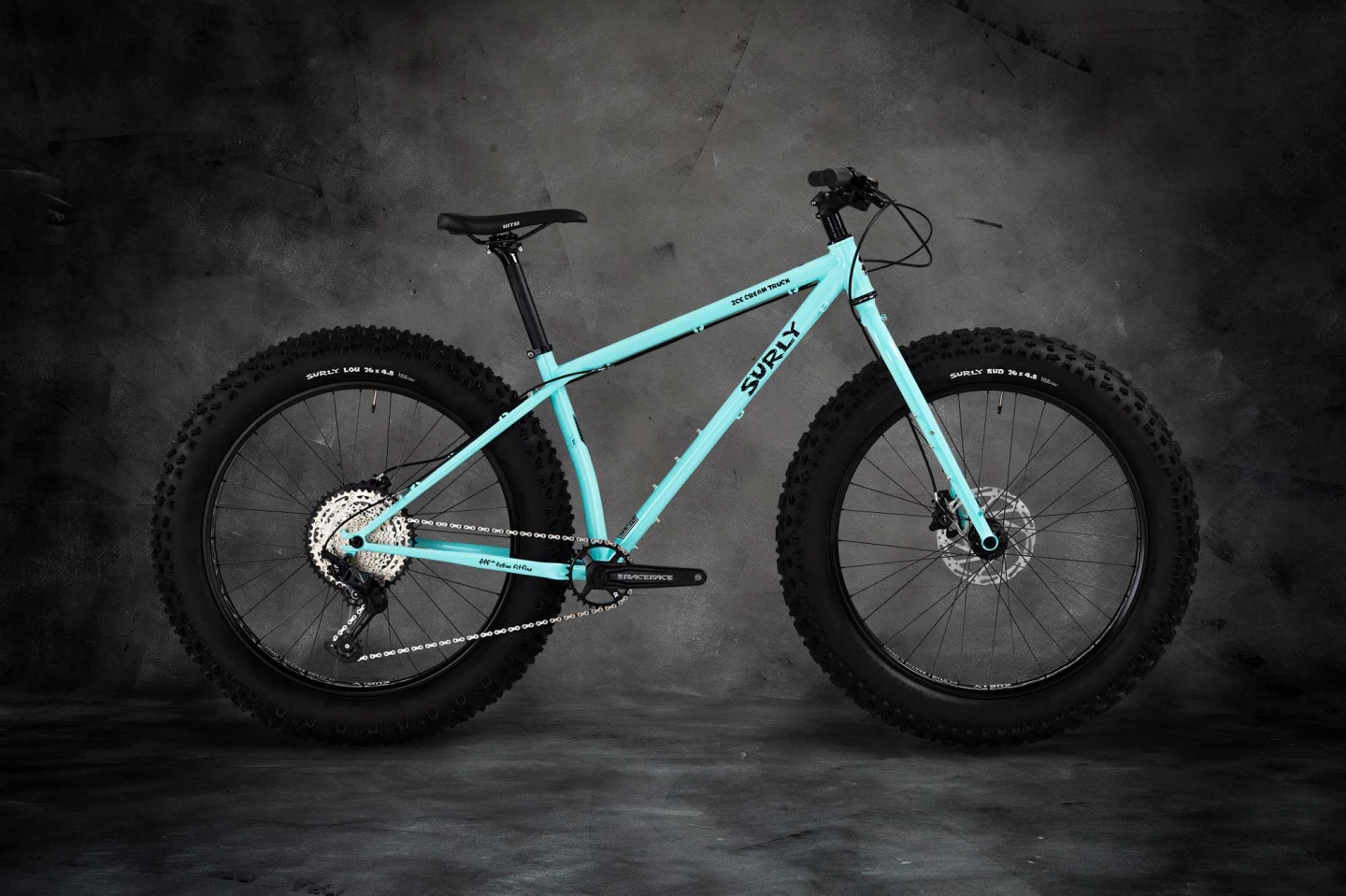

Ice Cream Truck
Trail Ready, Maximum Tire Clearance Fat Bike
* Manufacturer's suggested retail price may not include additional shipping or preparation charges. Please contact your local dealer for a quote.
$2349 USD / $3299 CAD
*
Ice Cream Truck is the bike we reach for when we don’t really know what the trail has in store.
The Largest Tire Clearance on a Fat Bike Frame
From log and root covered ribbons of twisty singletrack to miles of powdery snow or sandy beaches, Ice Cream Truck can handle it all. Hell, you could probably even hop over a grizzly if the situation arises. Probably.
While we could certainly throw out terms like “confidence-inspiring” and “traction-laden” to describe Ice Cream Truck, those phrases are mostly bullshit, so we’re not going to do that. We’re not here to inspire you, and we didn’t laden it with anything. What we did do was design a monolith of a trail bike that doesn’t give two shits about what’s in front of it.
- Long toptube, short seatstays, and a 68-degree headtube angle makes it tight and maneuverable on fast, technical terrain
- Modern trail bike standards like stealth dropper post routing, 44mm headtube, and thru-axles
- Clearance for a full 26” x 5” tire on 100mm rims
Bike Capabilities
- 5/5 with Tire Clearance Tire Clearance: 5 out of 5
- 5/5 with Snow and Sand Snow and Sand: 5 out of 5
- 5/5 with Singletrack Singletrack: 5 out of 5
- 4/5 with Bikepacking Bikepacking: 4 out of 5
NOTE: You can ride your bike wherever the hell you want, but this is what we think this bike is best at.
Related Content
#icecreamtruck Image Dump
#SurlyMakeItYourOwn
Tag your Instagram Images with #SurlyMakeItYourOwn and your bike may show up here.
This is a carousel that displays an Instagram feed of Surly bikes. Use Next and Previous buttons to navigate.
Where to Buy
Specifications
* Specification and pricing subject to change without notice
Frameset
- Frame
-
Surly Ice Cream Truck, 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
- Fork
-
Surly Ice Cream Truck, 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated. 483mm axle to crown, 47mm offset. 51mm IS front standard disc mount. 150mm x 15mm thru axle dropouts (axle included).
- Seatpost Clamp
- Stainless 33.1 collar, Black
Components
- Headset
- Cane Creek 40 Series
- Brakes
- Tektro Gemini HD-M520
- Rotors
- Tektro 180/160, 6-Bolt
- Shifter
- Shimano SLX M7100
- Stem
- Promax DA-296, 31.8mm
- Handlebar
- Salsa Rustler
- Saddle
- WTB Volt
- Seatpost
- Promax SP-2019, 0 offset (400mm length)
Drivetrain
- Crankset
- Race Face Aeffect, 30T
- Bottom Bracket
- Race Face
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano SLX M7100
- Cog or cogset
- Shimano SLX 10-51t, 12-speed
- Chain
- KMC X12
Wheels
- Front Hub
- Novatec 15x150mm
- Rear Hub
- Novatec 12x197mm
- Rims
- Surly My Other Brother Daryl Rims, 32h
- Tires
- Surly Bud & Lou, 26 x 4.8", 120tpi, tubeless ready
- Weight
- 34 lb 11 oz, size Medium
* Specification and pricing subject to change without notice
Frameset
- Frame
-
Surly Ice Cream Truck, 100% Surly Chromoly steel, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, E.D. coated
- Fork
-
Surly Ice Cream Truck, 100% Surly Chromoly steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated. 483mm axle to crown, 47mm offset. 51mm IS front standard disc mount. 150mm x 15mm thru axle dropouts (axle included).
- Seatpost Clamp
- Stainless 33.1 collar, Black
Components
- Headset
- Cane Creek
- Brakes
- SRAM DB Level TL Hydraulic or Tektro Gemini Hydraulic
- Rotors
- 180F/160R
- Shifter
- Shimano SLX SL-M7100
- Stem
- Kalloy 31.8
- Handlebar
- Salsa Rustler 31.8
- Saddle
- Selle Italia
- Seatpost
- Kalloy 30.9mm
Drivetrain
- Crankset
- Race Face Aeffect or Ride, 30t
- Bottom Bracket
- Race Face
- Front Derailleur
- N/A
- Rear Derailleur
- Shimano SLX RD-M7100 12-Speed
- Cog or cogset
- Shimano SLX 10-51t, 12-speed
- Chain
- KMC X12
Wheels
- Front Hub
- Novatec 150x15mm
- Rear Hub
- OE 197x12mm, Shimano Microspline
- Rims
- Surly My Other Brother Daryl Rims, 32h
- Tires
- Surly Bud & Lou, 26 x 4.8", 120tpi, tubeless ready
Complete bike spec subject to change
units:
Select a few bike sizes to compare.
| SIZE | SM | MD | LG | XL |
|---|---|---|---|---|
| Reach | 15.9 405 | 16.8 427 | 17.7 449 | 18.6 472 |
| Stack | 23.1 588 | 23.5 598 | 23.9 607 | 24.3 616 |
| Head Tube Angle | 68° | 68° | 68° | 68° |
| Head Tube Length | 3.7 95 | 4.1 105 | 4.5 115 | 4.9 125 |
| Seat Tube Length | 14.4 366 | 16.5 419 | 18.5 470 | 20.5 521 |
| BB Drop | 2.4 60 | 2.4 60 | 2.4 60 | 2.4 60 |
| Wheelbase | 43.5 1105 | 44.5 1131 | 45.6 1157 | 46.5 1182 |
| Chainstay Length | 17.3 440 | 17.3 440 | 17.3 440 | 17.3 440 |
| Top Tube Length, Actual | 21.9 556 | 22.6 573 | 23.4 595 | 24.5 623 |
| Top Tube Length, Effective | 23.0 585 | 24.0 610 | 25.0 635 | 26.0 660 |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
| Standover Height | 30.6 777 | 31.6 803 | 32.7 831 | 33.9 860 |
| Stem Length | 2.4 60 | 2.8 70 | 3.1 80 | 3.5 90 |
| Stem Angle | 7° | 7° | 7° | 7° |
| Handlebar Width | 29.5 750 | 31.49 800 | 31.49 800 | 31.49 800 |
| Crank Length | 6.7 170 | 6.9 175 | 6.9 175 | 6.9 175 |
| Fork Length | 19.0 483 | 19.0 483 | 19.0 483 | 19.0 483 |
| Fork Rake | 1.9 47 | 1.9 47 | 1.9 47 | 1.9 47 |
- Frame Construction
4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
- Fork Construction
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
- Rear Dropout Configuration
Horizontal slotted with optional vertical dumpout
- Rear Hub Spacing
12 x 197mm (Surly axle included)
10 x 190mm with Surly 10/12 Adapter Washers (not included)
- Front Hub Spacing
15 x 150mm (Surly axle included)
- Rear Brake
Disc - 51mm I.S. (203mm max rotor)
- Front Brake
Disc - 51mm I.S. (203mm max rotor)
- Head Tube
Ø44mm
- Steerer Tube
Ø28.6mm (1-1/8")
- Crown Race
Ø30mm (1-1/8")
- Stock Headset Upper (S.H.I.S.)
ZS44/28.6
- Stock Headset Lower (S.H.I.S.)
EC44/30
- Seat Collar
Ø33.1mm
- Seatpost
Ø30.9mm
- Front Derailleur (Clamp)
High direct mount top-pull (Ø34.9mm)
55mm offset adapter (not included)
- Max Chainring (CL)[3]
1x (Fat bike 190): 34T [5]
2x (Surly OD): 22/36T
- Bottom Bracket
100mm threaded (1.37" x 24TPI)
- Tire Clearance Frame [1]/[2]
26 x 5.1" (rear axle position)
26 x 4.8" (front axle position)
29 x 3.0"
- Tire Clearance Fork [1]
26 x 5.25"
29 x 3.0"
- Rigid Fork Spec
483 x 47mm
- Max Suspension Fork Length [4]
571 x 51mm (Fatbike 140mm)
- Bottle Mounts Frame
1 Standard (XS - M)
2 Standard (L - XXL)
- Bottle Mounts Fork
2 Three-Pack
- Rack Mounts Frame
Yes (upper and lower threaded)
- Rack Mounts Fork
Yes (upper, lower, and mid-blade threaded)
- Fender Mounts Frame
Yes
- Fender Mounts Fork
N/A
- Other Features
Internal dropper post routing compatible
[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
[4] Suspension fork length listed at full extension (not at sag
[5] SRAM cranks not recommended due to inadequate crank arm clearance from the frame (narrow Q-Factor)
