Simplify the Haul With an Electric Cargo Bike

Riding loaded with cargo is core to us here at Surly, whether we’re running a front rack and bag setup or a full-blown cargo bike and trailer. There are times, however, when even the strongest riders are limited in what they can haul, so we created Big Easy, our long-tail electric cargo bike. Consider it the 18-wheeler of the cargo bike world, minus the diesel fumes.

When it comes to geometry, Big Easy rides and feels like a normal-length bike. We also increased stand-over height clearance and threw in dropper post routing to promote bike sharing across different-sized riders. So whether you want to wave goodbye to the old family gas hog, upgrade your bike-supported business’s two-wheeled fleet, or simply haul more bowling balls during your daily commute, Big Easy makes doing all that, well, easy.

  • Full component set perfectly suited for electric cargo bikes, including four-piston Tektro brakes
  • Equipped with Bosch Performance CX, their most powerful drive unit
  • Damping headset for smooth and stable handling under heavy loads
  • Capable of running dual batteries for extended range, if you’re into that. (All mounting hardware and wiring included.)
  • Large-volume 26” x 2.5” ExtraTerrestrial tires and durable wheel builds
  • Big Easy available for purchase in the US only (available in Canada Fall 2019)
  • Frame integration with Surly Bill and Ted trailers for maximum cargo potential

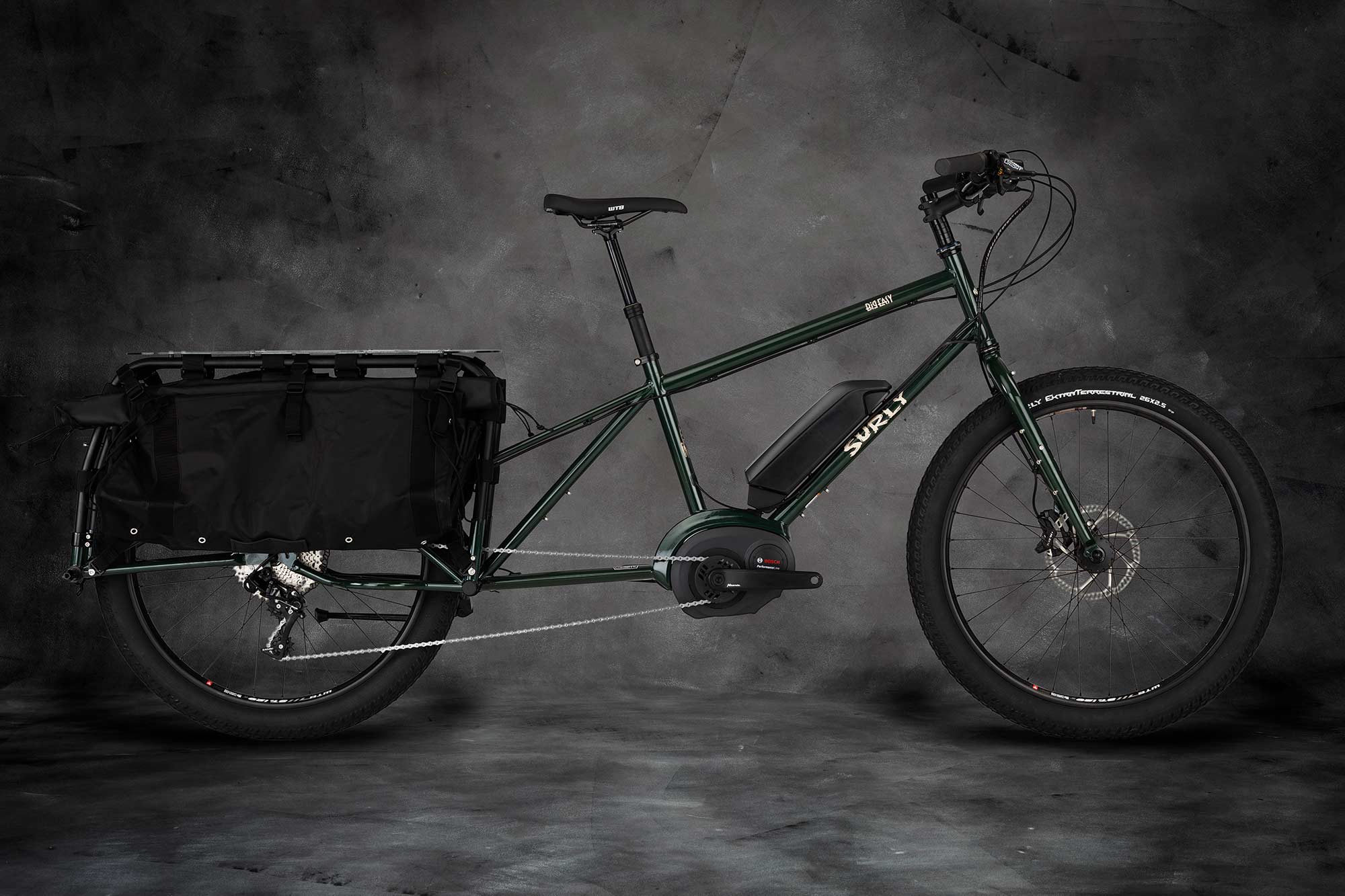

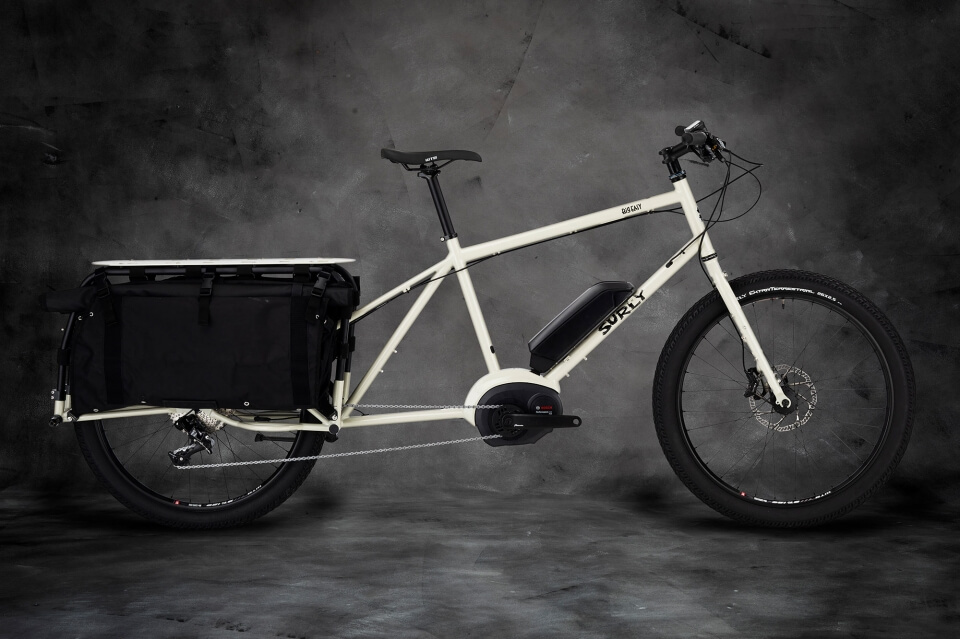

Big Easy complete bike side view next to train car
Big Easy rocket ship decal on seat tube
Big Easy riding down street with two kids aboard
Big Easy Bosch power display
Big Easy Bosch motor and crank side view
Big Easy riding and hauling cargo
Big Easy Bosch Power Pack 500 battery on down tube

Specifications

MY19 Big Easy Geo
units:

Select a few bike sizes to compare.

SIZE SM MD LG
Reach 16.2 411 17.0 431 17.6 448
Stack 22.3 567 23.4 595 24.5 623
Head Tube Angle 69.0° 69.0° 69.0°
Head Tube Length 5.9 150 7.1 180 8.3 210
Seat Tube Length 16.0 406 17.0 432 20.0 508
BB Drop 1.6 40 1.6 40 1.6 40
Wheelbase 58.3 1480 59.5 1512 60.6 1539
Chainstay Length 32.3 821 32.3 821 32.3 821
Top Tube Length, Actual 22.6 574.1 23.4 594.4 24.3 618.1
Top Tube Length, Effective 23.2 590 24.4 620 25.4 645
Seat Tube Angle 72.5° 72.5° 72.5°
Standover Height 28.5 723 30.4 771 32.3 821
Stem Length 60 70 80
Stem Angle 6° 6° 6°
Handlebar Width 740 740 740
Crank Length 175 175 175
Fork Length 16.5 420 16.5 420 16.5 420
Fork Rake 1.7 43 1.7 43 1.7 43

*Measured at the center of the TT and based on a wheel diameter of 678mm

Frame Construction

4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded

Fork Construction

4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Rear Dropout Configuration

Big Dummy Style. 10 x 135mm

Rear Hub Spacing

10 x 135mm

Front Hub Spacing

10 x 100mm

Rear Brake Compatibility

Disc - 51mm I.S. (203mm max rotor)

Front Brake Compatibility

Disc - 51mm I.S. (203mm max rotor)

Head Tube

Ø34mm

Steerer Tube

Ø28.6mm (1-1/8")

Crown Race Diameter

Ø30mm (1-1/8")

Stock Headset Upper (S.H.I.S.)

EC34/28.6

Stock Headset Lower (S.H.I.S.)

EC34/30

Seat Collar

Ø33.1mm

Seatpost Diameter

Ø30.9mm

Front Derailleur (Clamp)

N/A

Max Chainring (CL)[3]

No frame limitations

Bottom Bracket

Bosch Mid Drive Mounting Node

Tire Clearance Frame [1][2]

26 x 2.5" (w/ or w/o fenders)

Tire Clearance Fork [1]

26 x 3.0"" (w/o fenders)
26 x 2.8"" (w/ fenders)

Rigid Fork Spec

420 x 43mm

Max Suspension Fork Length [4]

N/A

Bottle Mounts Frame

3 Standard

Bottle Mounts Fork

4 Three-Pack

Rack Mounts Frame

Yes (Surly Dummy Rails)

Rack Mounts Fork

Yes (upper, lower, and mid-blade threaded)

Fender Mounts Frame

Yes

Fender Mounts Fork

Yes

Other Features

Kickstand plate
Dedicated Rohloff cable routing and mount for OEM 2 axle plate
Internal dropper post routing compatible
Dual Bosch PowerPack Battery Mounts

  • [1]  Different tire and rim combinations will result in different clearances.
    [2]  Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
    [3]  Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
    [4]  Suspension fork length listed at full extension (not at sag)
